In terms of seat recline, what is the conversion from inches to degrees?
8 replies
Hi Guest, join in the discussion on In terms of seat recline, what is the conversion from inches to degrees?
Hi Guest, join in the discussion on In terms of seat recline, what is the conversion from inches to degrees?
074061
074061
Cathay Pacific - Asia Miles
Member since 25 Apr 2013
Total posts 262
In terms of seat recline, what is the conversion from inches to degrees?
charlieg
charlieg
QantasFF Platinum
Member since 16 Feb 2012
Total posts 133
because of the varying height of seats, there is no correlation between reclining angle and reclining inches
074061
074061
Cathay Pacific - Asia Miles
Member since 25 Apr 2013
Total posts 262
I see
11sjw
11sjw
Member since 11 Mar 2012
Total posts 160
I believe the "inches" measurement measures how far a point on the headrest / top of seat moves. The only "conversion" would be as a function of seat height and basic geometry.
Phil Young
Phil Young
Qantas
Member since 22 Oct 2012
Total posts 259
The issues of seat pitch (separatioin between seats) in inches, and the angle of recline (in degrees) are completely seperate issues. On one hand they are unrelated, though of course are both critical to passenger enjoyment.
watson374
watson374
Qantas - Qantas Frequent Flyer
Member since 17 Aug 2012
Total posts 1,285

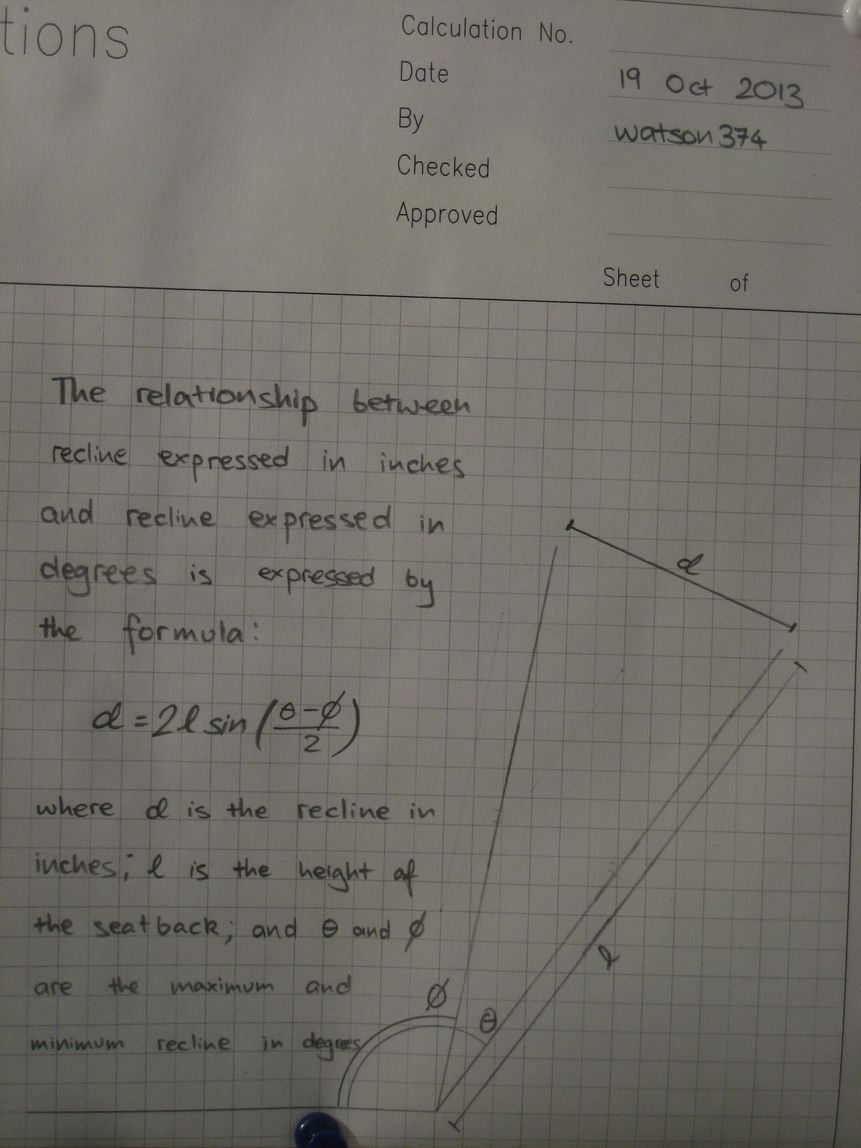

This involves some trigonometry, so I've drawn a diagram for the lols.
It's not true that they are unrelated - they are, they're both measurements of recline - but I don't think anyone in this thread has actually thought through how to convert these. My formula is based on finding the length of a chord (the recline in inches) using the radius (the height of the seatback) and the angle subtended at the centre of the chord (the difference between the maximum and minimum angles of recline in degrees). Note that if you're using the formula to convert recline from inches to degrees, you'll only be able to find out the recline in degrees from the 'upright' position.
074061
074061
Cathay Pacific - Asia Miles
Member since 25 Apr 2013
Total posts 262
Thanks. It'll take me a few minutes to calculate that, but thanks. The sin rule right?
watson374
watson374
Qantas - Qantas Frequent Flyer
Member since 17 Aug 2012
Total posts 1,285
If you're only using the isosceles triangle formed by the two extreme seatback positions recline in inches, you could use the cos rule to calculate the recline from the upright position. This involves square numbers, though, but is also a perfectly valid method.
In this case, the formula would be:
where all symbols carry the same meaning as in my first formula.
Thanks for bringing up the sin rule and letting me derive another formula. I have tested both formulae and they both work - both return an identical result and both match my scale drawing.
I hope this proves useful, at the very least as something to do on a regional LCC flight with no IFE!
TheRealBabushka
TheRealBabushka
Member since 21 Apr 2012
Total posts 2,058
Hey Watson,
This post is fantastic and relates to the query I raised today.
Assuming the height of the seat back is constant, a greater distance of recline = a larger degree of recline?
